QDN Straight-Through Male G1/2 Brass Ni Pl. 612SFAW21MXN

Name: QDN Straight-Through Male G1/2 Brass Ni Pl. 612SFAW21MXN
SKU: 48919700
Availability: InStock

物料号 48919700

QDN Straight-Through Male G1/2 Brass Ni Pl. 612SFAW21MXN

物料号 48919700

可以迅速提供给已注册用户

描述

全孔径直通阳接头和插头内无阀门结构设计，因此可以达到最高流量。同时也避免了通常由于内置阀门而导致的振荡问题。

一般信息

Certifications

GWI2022年9月9日, 10:07 / 151.68 kB

How to select the right coupling

Which type for your application2022年9月9日, 10:07 / 174.89 kB

How to translate the manufacturercode2022年9月9日, 10:07 / 470.90 kB

Overview of plug profiles2022年9月9日, 10:07 / 249.81 kB

Cross reference TEMA old and new numbers2022年9月9日, 10:07 / 243.11 kB

Movies

Sealants

Sealing-Material

NBR (Buna) = Acrylonitrile-Butadiene Rubber

Temperature range (°C)

-20/+100

Sealing-Material

EPDM = Ethylene Propylene Diene Rubber

Temperature range (°C)

-40/+150

Sealing-Material

FKM (Viton) = Fluorocarbon Rubber

Temperature range (°C)

-15/+200

Sealing-Material

FFKM (Kalrez) = Perfluoro Rubber

Temperature range (°C)

-25/+240

Specials EVXS_79

Info

Please contact us for more information about the Rectus Clean Sleeve EVXS versions.

Technical Documentations

Flow rate overview2022年9月9日, 10:07 / 222.59 kB

Valve overview2022年9月9日, 10:07 / 112.01 kB

Chemical resistance PVDF2022年9月9日, 10:07 / 202.58 kB

Chemical resistance POM2022年9月9日, 10:07 / 182.09 kB

Chemical resistance O-rings2022年9月9日, 10:07 / 180.49 kB

Certifications

GWI2022年9月9日, 10:07 / 151.68 kB

How to select the right coupling

Which type for your application2022年9月9日, 10:07 / 174.89 kB

How to translate the manufacturercode2022年9月9日, 10:07 / 470.90 kB

Overview of plug profiles2022年9月9日, 10:07 / 249.81 kB

Cross reference TEMA old and new numbers2022年9月9日, 10:07 / 243.11 kB

Movies

Sealants

Sealing-Material

NBR (Buna) = Acrylonitrile-Butadiene Rubber

Temperature range (°C)

-20/+100

Sealing-Material

EPDM = Ethylene Propylene Diene Rubber

Temperature range (°C)

-40/+150

Sealing-Material

FKM (Viton) = Fluorocarbon Rubber

Temperature range (°C)

-15/+200

Sealing-Material

FFKM (Kalrez) = Perfluoro Rubber

Temperature range (°C)

-25/+240

Specials EVXS_79

Info

Please contact us for more information about the Rectus Clean Sleeve EVXS versions.

Technical Documentations

Flow rate overview2022年9月9日, 10:07 / 222.59 kB

Valve overview2022年9月9日, 10:07 / 112.01 kB

Chemical resistance PVDF2022年9月9日, 10:07 / 202.58 kB

Chemical resistance POM2022年9月9日, 10:07 / 182.09 kB

Chemical resistance O-rings2022年9月9日, 10:07 / 180.49 kB

技术规格

Article

48919700

Header [Brand]

Nipple

Description

QDN Straight-Through Male G1/2 Brass Ni Pl. 612SFAW21MXN

Product environment

Mold

Manufacturer

Rectus

Manufacturer code

612SFAW21MXN

Material

Brass

Maximum working pressure

20 barg

Temperature range

-15..200 °C

Connection type

Male Thread

With valve

增值税常规税率

21%

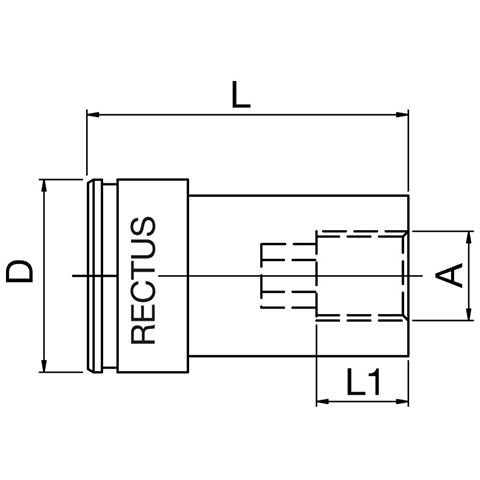

尺寸

Ø D

32 mm

44 mm

SW (HEX)

A connection

G 1/2

Nominal size

DN 12

备注

Remarks

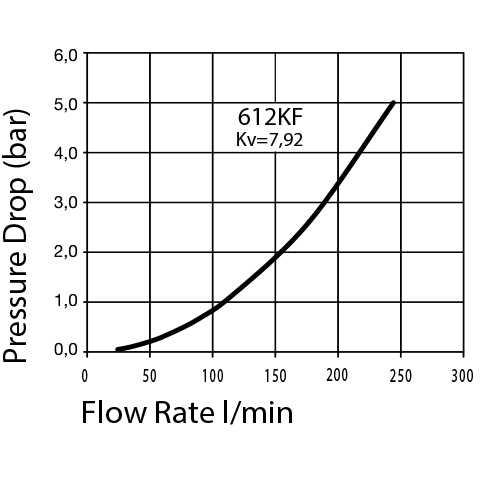

Measurement data generated in accordance with ISO 6358; CCTOP RP50P at input pressure 6 bar; pressure drop 0,5 bar)

Remarks

Rectus - Profile
