Diaphragm Press. Regulator SIR100S 2V1 I/P 2b A:V1/4M B:V1/4F

Name: Diaphragm Press. Regulator SIR100S 2V1 I/P 2b A:V1/4M B:V1/4F
SKU: 92000925
Availability: InStock

物料号 92000925

Diaphragm Press. Regulator SIR100S 2V1 I/P 2b A:V1/4M B:V1/4F

物料号 92000925

可以迅速提供给已注册用户

描述

UHP diaphragm pressure regulators valves are available in various configurations and versions for usage in (cleanroom) utility and equipment manufacturing. The SS316L(VAR) pressure regulators have a polished internal surface finish, to minimize the forming of particles.

They are assembled and tested in a cleanroom environment.The valves are available with manual actuation for high and low pressures. The pressure regulators can be provided in 2/3/4/5 or 6 port configurations with the associated 1/4" face seal connections.

一般信息

cv-calculator

CV计算器

Specials

Info

Please contact us for more information about the special versions.

cv-calculator

CV计算器

Specials

Info

Please contact us for more information about the special versions.

技术规格

Article

92000925

Header [Brand]

UHP/HP Diaphragm Pressure Regulator

Description

Diaphragm Press. Regulator SIR100S 2V1 I/P 2b A:V1/4M B:V1/4F

Manufacturer

Rotarex - Selfa

Manufacturer code

SIR100S 2V1 I/P 2b A:V1/4M B:V1/4F

Material body

SS 316L

Material handle

Extruded plastic

Material seat

PVDF

Material bonnet

Brass nickel plated

Material poppet

SS 316L

Material diaphragm

Hastelloy®

Inlet pressure

50 bar

Outlet pressure

2 bar

He leak rate

Up to 10^-9 mbar · l/s

Flow coefficient

0,2 Cv

Temperature range

-20 °C to 65 °C

Valve Actuation

Manually

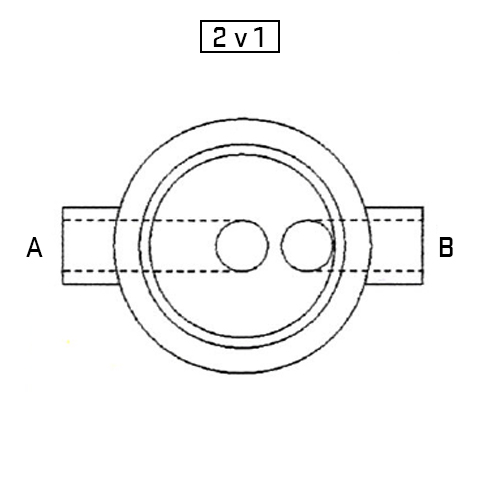

Port configurations

2 ports in line

Connection type

Face seal male/Face seal female

Polishing

Mechanical polishing

Surface finish

<0,4µm Ra

增值税常规税率

21%

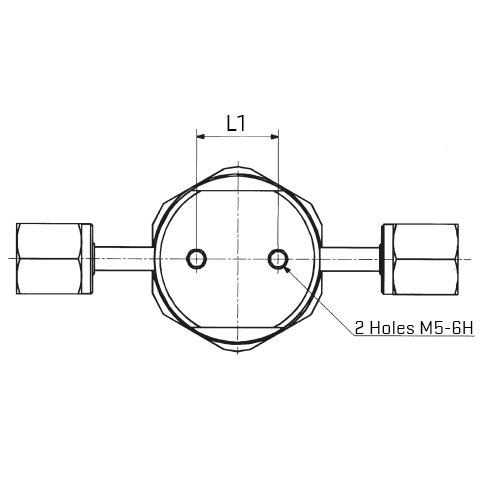

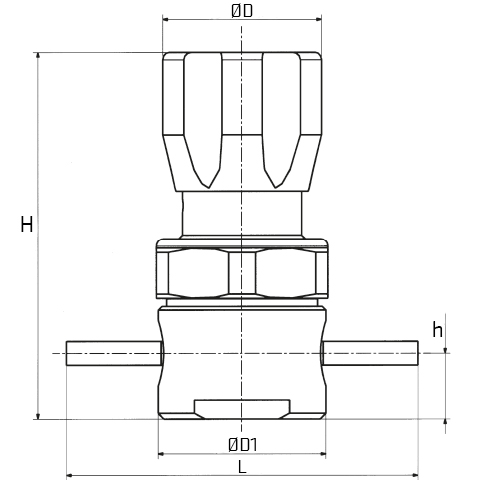

尺寸

Male face seal 1/4

Female face seal 1/4

Ø D

44,5 mm

Ø D1

45 mm

94 mm

22,3 mm

47 mm

99 mm

17,5 mm

备注

Remarks

Images shown can slightly deviate from the part supplied depending on the actual configuration/options.
