Tube Fitting Connector FSM1/4_1/4 SS316L EP Ra

Name: Tube Fitting Connector FSM1/4_1/4 SS316L EP Ra<0,25µm
SKU: 94206500
Availability: InStock

物料号 94206500

Tube Fitting Connector FSM1/4_1/4 SS316L EP Ra

物料号 94206500

可以迅速提供给已注册用户

描述

UHP unions in low sulfur or standard SS316L stainless steel are internal or/and external electropolished and packed in a class 10 cleanroom.

一般信息

Certifications

texts

ISO 9001 Certification N°:DE-062832 Q1.

Specials

Info

Please contact us for more information about the special versions.

Certifications

texts

ISO 9001 Certification N°:DE-062832 Q1.

Specials

Info

Please contact us for more information about the special versions.

技术规格

Article

94206500

Header [Brand]

Union

Description

Tube Fitting Connector FSM1/4_1/4 SS316L EP Ra<0,25µm

Manufacturer code

89351015

Material

SS 316L

Connection type

Tube

Surface finish

<0,25 µm Ra

增值税常规税率

21%

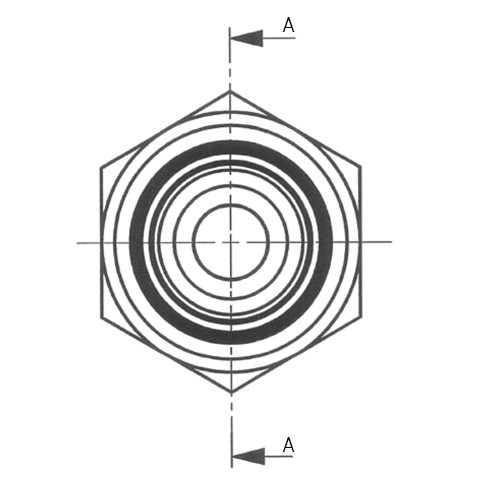

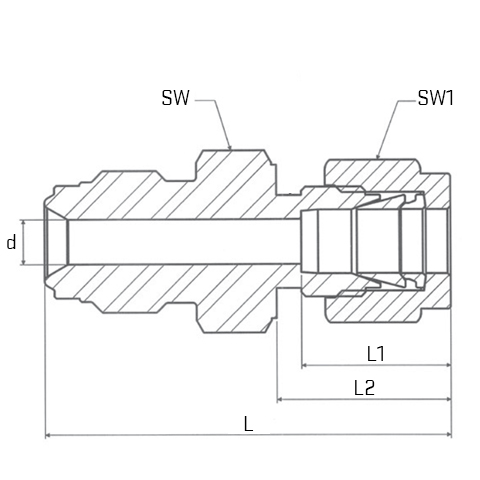

尺寸

Ø d

4,6 mm

41,1 mm

15,2 mm

17,8 mm

SW (HEX)

15,9

SW1 (HEX)

14,3
